제품크기

  mm : 435 x 680 x 43.5

프로세서

 프로세서

  1개의 Intel® Xeon® Processors E3-1200 v5/v6 Processors

 UPI속도

  9.6 GT/s, 10.4 GT/s

 소켓 타입

  Socket P0(LGA-1151 Socket)

칩셋 지원

  Intel® Lewisburg C232 series chipset

시스템 메모리

- DDR4 2133-2400 ECC UDIMM

- 4 DIMM slots ; 2 Channels ; Up to 64G Refresh CPU

전면 패널

- System power on/off

- System reset

- 2 x USB 3.0 Type A

LEDs

  Power status, HDD active, LAN active

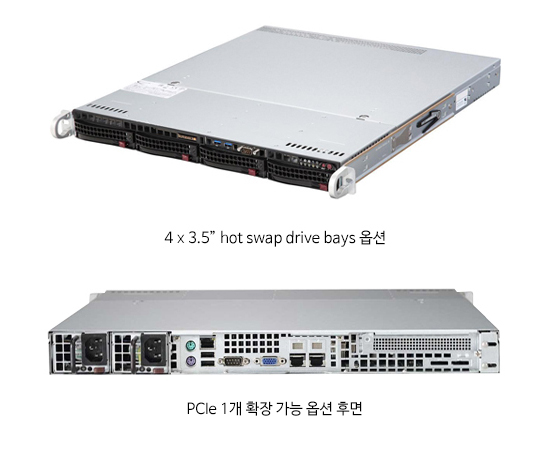

드라이브 베이

  옵션

  외부

  3.5" hot swap

 4

전원장치

  300W 1+1 redundant power supply 80+ Gold

 - AC INPUT : 100~240V,50-60Hz,7.8~3.8A

확장 슬롯

PCIe 3.0

1 x16 slot (FH)

시스템

BIOS

 BIOS 타입

 AMI UEFI BIOS

BIOS 기능

 - ACPI

 - PXE

 - WOL

 - AC loss recovery

 - IPMI KCS

  interface

 - SMBIOS

 - Serial console redirection

 - BIO Recovery Mode

 - SRIOV

 - BIOS Boot

  Specification

온 보드

디바이스

  SATA/SAS

  SATA : Built-in SATA controller with RAID support on Intel® C232 PCH

  SAS: Optional Broadcom/LSI SAS 3008 IOC

  IPMI

  Aspeed AST2500 Advanced PCIe Graphics & Remote Management   Processor

- Baseboard Management Controller

- Intelligent Platform Interface 2.0 (IPMI 2.0)

- iKVM, Media Redirection, IPMI over LAN, Serial over LAN

- SMASH Support

- HTML5

 네트워크

컨트롤러

• 2 x external RJ45 ports support 1 GbE [Optional 2 x
  external RJ45 ports support 1 GbE (BTO)]

• 1 x GbE RJ45 dedicated for BMC management

 그래픽

  Aspeed AST2500 Advanced PCIe Graphics & Remote Management   Process

- PCIe VGA/2D Controller

- 1920x1200@60Hz 32bpp

제품크기

  mm : 435 x 680 x 43.5

프로세서

 프로세서

  최대2개의 Intel Xeon® Scalable Processors

 UPI속도

  9.6 GT/s, 10.4 GT/s

 소켓 타입

  Socket P0(LGA-3647 Socket)

칩셋 지원

  Intel® Lewisburg C620 series chipset

시스템 메모리

- DDR4 2666/2400MHz

  (feature supports up to DDR4 2933MHz by next gen. process upgrade)

- Total 12 memory slots ; 6 channel per CPU (1DPC)

- Intel® NVM DIMM (Apache Pass) support by next gen. Purley Refresh CPU

전면 패널

- System power on/off

- System reset

- 2 x USB 3.0 Type A

LEDs

  Power status, HDD active, LAN active

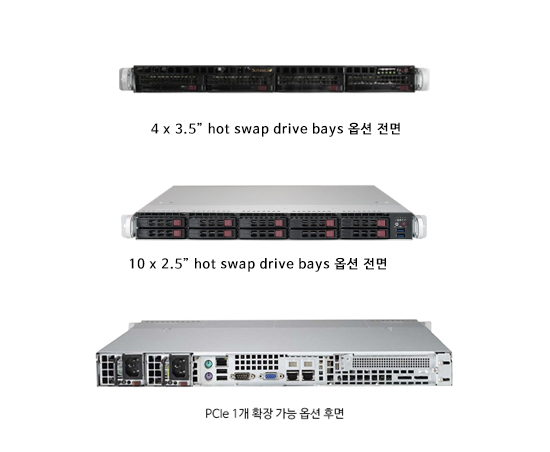

드라이브 베이

 옵션1

 외부

 3.5" hot swap

 4

 옵션1

 외부

 3.5" hot swap

 10X6G SATA

전원장치

  450W 1+1 redundant power supply 80+ Gold

 - AC INPUT : 100~240V,50-60Hz,7.8~3.8A

확장 슬롯

 PCIe 3.0

 1 x16 slot (FH)

시스템

BIOS

  BIOS 타입

 AMI UEFI BIOS

  BIOS 기능

 -ACPI

 -PXE

 -WOL

 -AC loss recovery

 -IPMI KCS interface

 -SMBIOS

 -Serial console redirection

 -BIO Recovery Mode

 -SRIOV

 -BIOS Boot Specification

온 보드

디바이스

  SATA/SAS

  SATA : Built-in SATA controller with RAID support on Intel®           C232 PCH

  SAS: Optional Broadcom/LSI SAS 3008 IOC

  IPMI

  Aspeed AST2500 Advanced PCIe Graphics & Remote   Management Processor

- Baseboard Management Controller

- Intelligent Platform Interface 2.0 (IPMI 2.0)

- iKVM, Media Redirection, IPMI over LAN, Serial over LAN

- SMASH Support

- HTML5

 네트워크

 컨트롤러

- Intel® I350 dual ports with RJ45 connectors on rear I/O

- Intel® PCH (Lewisburg) Integrated 10GbE LAN Controller

  supports 2 x 10GbE SFP+on rear I/O (Optional, BTO)

- Realtek RTL8211E for BMC dedicated management port

 그래픽

  Aspeed AST2500 Advanced PCIe Graphics & Remote   Management Process

- PCIe VGA/2D Controller

- 1920x1200@60Hz 32bpp

제품크기

 mm : 438 x 680 x 177

프로세서

 프로세서

- 최대 2개의 Intel® Xeon® Scalable Processors

  (Skylake and next gen. CPU)

- CPU TDP up to 205W 지원

 UPI속도

 10.4 GT/s, 9.6 GT/s

 소켓 타입

 Socket P0(LGA-3647 Socket)

칩셋 지원

 Intel® C621 Express Chipset

시스템 메모리

- 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

- Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz

- Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;

- Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

전면 패널

 System power on/off, System ID, System reset, 2x USB 3.0 Type A

LEDs

 Power status, System alert, LAN activity, Drive activity, System ID

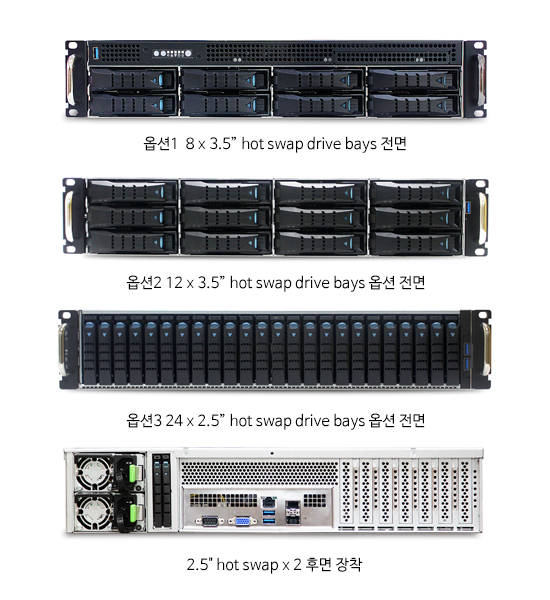

드라이브

베이

 옵션1

 외부

 3.5" hot swap

 24

 내부

 2.5" hot swap

 2

 옵션2

 외부

 3.5" hot swap

 24

 3.5" / 2.5" hot swap

 12/2 (15mm,rear)

전원장치

 1200W 1+1 redundant PSU PMBus 1.2 80+ Platinum

확장슬롯

- 4 PCI-E 3.0 x16,

- 2 PCI-E 3.0 x81

- M.2 Interface: PCI-E 3.0 x4

- M.2 Form Factor: 2260, 2280, 22110

- M.2 Key: M-Key,

- 2 PCI-E 3.0 NVMe x4 Internal Port(s)

시스템BIOS

 BIOS타입

 AMI UEFI BIOS

 Software

 Intel® Node Manager, IPMI2.0, KVM with dedicated  LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

온 보드

디바이스

 SATA

 Intel® C621 controller for 14 SATA3 (6 Gbps) ports;  RAID 0,1,5,10

 IPMI

 ASPEED AST2500

 네트워크 컨트롤러

 Dual LAN with 1GbE with Intel® x722

 그래픽

 Aspeed AST 2500 BMC
